One enclosure, many devices

Elegant, slim enclosure is made of high quality plastic.
Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.


See the characteristics of SLIM LINE detectors

Reliable motion detection

A unique lens

Each detector comes with a modern lens designed and manufactured in Japan – specially for SATEL. It provides a very large detection area with dimensions up to 20 m x 24 m and 90° viewing angle.

coverage area
detection angle

Design of the lens, as well as the material of which it was made, make it exceptionally resistant to deformation.

Design of the lens
Coverage area Coverage area of the LUNA (except PET models) and PRO detectors with wide-angle lens (WD)

New motion detection algorithm

Many years of experience in the production of motion detectors and the use of the latest technologies made it possible to develop an advanced new generation algorithm of motion detection. Because of it, SLIM LINE detectors ensure reliable detection of intruders throughout the entire monitored area, without triggering unwanted alarms.

Digital temperature compensation

SLIM LINE detectors dynamically adjust the motion detection algorithm to changes in ambient temperature, so these changes do not affect the effectiveness of the detectors.

Quick lens replacement

As you can easily replace the complete front part with the lens, the SLIM LINE detectors* can be quickly and conveniently customized to suit the needs of the premises, e.g. to the shape of protected room. The wide-angle (WD) lenses are fitted as standard, but curtain (CT) and long-range (LR) lenses are also optionally available.

* except for PET detectors

DUAL – two detection
paths: PIR and MW

Dual technology detectors, in addition to the infrared (PIR) detector, are also fitted with a microwave sensor (MW), which obviously enhances their immunity to unwanted alarms caused by rapid temperature changes in the protected room or movements of air masses within the coverage area.

Creep zone protection

An integrated tilting mirror used in the LUNA* and PRO models enables effective monitoring of the so-called creep zone, i.e. the area directly under the detector.

* except for PET detectors

Signaling covering attempts

The SLIM LINE detectors in the PRO version come with the function of active anti-masking using infrared radiation. Therefore, any attempts to disable them, for example, by covering the lens with adhesive tape or spraying paint or clear varnish on it, can be signaled.

See a presentation of SLIM LINE detectors

Quick and easy installation


Practical enclosure opening / closing mechanism

You can open the enclosure with a flat tip screwdriver, while no tools are required to close it.

Opening and closing


Plug-in terminal block

The LUNA and PRO versions come with a plug-in terminal block. When removing the electronics board, you do not have to unscrew the wire terminals. It also allows you to quickly change the detector model.

Plug-in terminal block


Built-in EOL resistors

All SLIM LINE detectors have built-in end-of-line resistors designed for work with SATEL control panels (1.1 kΩ). The LUNA and PRO models are additionally provided with resistors for faster installation in systems based on other types of control panels (4.7 kΩ, 5.6 kΩ).


Adjustable wall and ceiling mounting bracket

Design of the SLIM LINE detectors allows installation directly on a flat surface. If the detector needs to be mounted at a different angle for optimal adjustment of the protected area to the room, you can use the BRACKET D mount. Thus you can adjust the detector tilt angle in two planes: up to 35° vertically and up to 90° horizontally. To meet the EN 50131 requirements for Grade 3, the PRO model bracket is provided with a tamper switch.

Adjustable wall and ceiling mounting bracket

Additional light source

Models marked as LUNA come with additional built-in white LEDs. Consequently, these detectors can be used e.g. as motion responsive corridor lighting that can also work in the event of a power outage in the network. Lighting function can be controlled remotely or activated for a specified time when motion is detected.

Two levels of sensitivity

It is possible to remotely switch between two sets of detector sensitivity parameters. This allows you to change the motion detection settings e.g. depending on the state of the partition to which the detector is assigned. If the partition is disarmed, the detector can switch on the light in response to the slightest movement. When the partition is armed, the detector can use settings appropriate to eliminate unwanted alarms.


Remote configuration

A very useful feature for the installer, available in the LUNA and PRO models, is the ability to remotely change the detector operating parameters using the OPT-1 keyfob. Thus, the settings (including sensor sensitivity, operating mode, indicator light and LED lighting) can be changed easily, without having to open the detector enclosure each time.

One indicator – many colors

SLIM LINE detectors offer the possibility of choosing the LED indicator color. Depending on the model, there are four or even seven colors available.

If necessary, the LED indicator can be turned off permanently.

Technical data

Comparison table

compliance with EN 50131 Grade 2

compliance with EN 50131 Grade 3

configuring operating parameters: potentiometers

configuring operating parameters: buttons and keyfob

end-of-line resistors - 1.1 kΩ

end-of-line resistors - 4.7 kΩ, 5.6 kΩ

plug-in terminal block

electronics board protecting cover

number of available LED indicator colors

active IR anti-masking

creep zone protection

built-in LED lighting

pet immunity function



coverage area with WD lens (standard)

coverage area with LR lens

coverage area with CT lens

SLIM-PIR 15 m x 20 m, 90° 25 m x 3,6 m 16 m x 2 m
SLIM-PIR-PET 12 m x 13 m, 90° n/d
SLIM-PIR-LUNA 20 m x 24 m, 90° 30 m x 3,6 m 22 m x 2 m
SLIM-PIR-LUNA-PET 12 m x 13 m, 90° n/d
SLIM-PIR-PRO 20 m x 24 m, 90° 30 m x 3,6 m 22 m x 2 m
SLIM-DUAL 15 m x 20 m, 90° 20 m x 3,6 m 16 m x 2 m
SLIM-DUAL-PET 12 m x 13 m, 90° n/d
SLIM-DUAL-LUNA 20 m x 24 m, 90° 28 m x 3,6 m 22 m x 2 m
SLIM-DUAL-LUNA-PET 12 m x 13 m, 90° n/d
SLIM-DUAL-PRO 20 m x 24 m, 90° 28 m x 3,6 m 22 m x 2 m

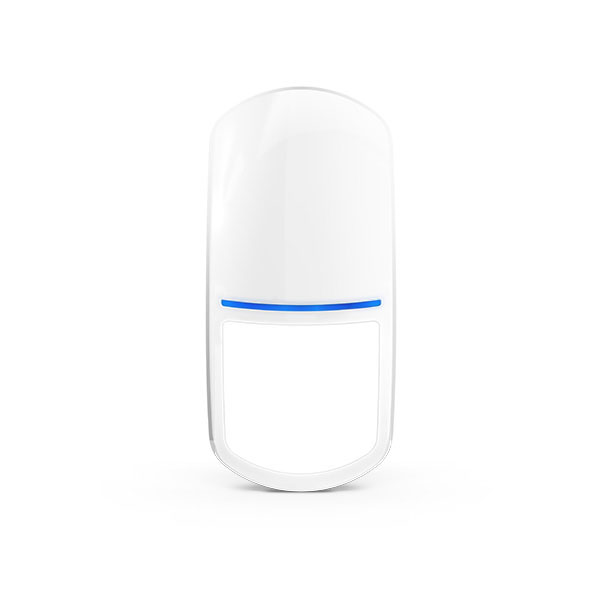

SLIM-DUAL-LUNA-PET detects motion in the protected area. Additionally, the detector has a set of LEDs to implement the lighting feature.

  • certificate of compliance with the EN 50131 requirements for Grade 2
  • motion detection using two sensors: a passive infrared (PIR) sensor and a microwave (MW) sensor
  • adjustable detection sensitivity of both sensors
  • option to test the sensors separately
  • digital motion detection algorithm
  • digital temperature compensation
  • digital filter of signals received by the microwave sensor to ensure immunity to false alarms caused by the power network and discharge lamps
  • operating mode selection: basic, advanced, PIR or MW
  • wide-angle lens, designed specifically for SLIM LINE detectors
  • pet immunity up to 20 kg (basic operating mode only)
  • ability to configure detector operating parameters using the OPT-1 keyfob
  • built-in end-of-line resistors (2EOL: 2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ)
  • lighting feature implemented with white LEDs
  • remote lighting control or motion activated lighting capability
  • LED indicator
  • selectable color of LED indicator (7 colors available)
  • LED indicator remote enable/disable
  • remote switching between two sets of detector operating parameters
  • configuration mode remote enable/disable
  • supervision of motion detection and supply voltage circuit
  • tamper protection against opening of enclosure and removal from mounting
5 years warranty
EN-50131 GRADE 2 - certificate


general information manual
updated: 2021-09-07
628 KB
quick installer guide
updated: 2020-06-05
443 KB
mounting template
updated: 2022-03-25
233 KB


EU declaration of conformity
updated: 2019-11-07
89 KB
EN-50131 GRADE 2 - certificate
updated: 2020-03-26
171 KB

Technical Data

Supply voltage
12 V DC
Detected target velocity
0,3...3 m/s
Operating temperature range
Recommended mounting height
2,4 m
Standby mode current consumption
14 mA
Max. current consumption
100 mA
144 g
Maximum humidity
62 x 137 x 42 mm
Environmental class according to EN50130-5
Alarm signaling time
2 s
Complied with standards
EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
Microwave frequency
24,125 GHz
Security grade according to EN50131-2-4
Grade 2
EOL resistors
2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ
Warm-up period
30 s
Detection area
12 m x 13 m, 90°
Alarm outputs (NC relay, resistive load)
40 mA / 24 V DC
Tamper outputs (NC relay, resistive load)
40 mA / 24 V DC
Relay contact resistance (alarm output)
26 Ω
Relay contact resistance (tamper output)
26 Ω
