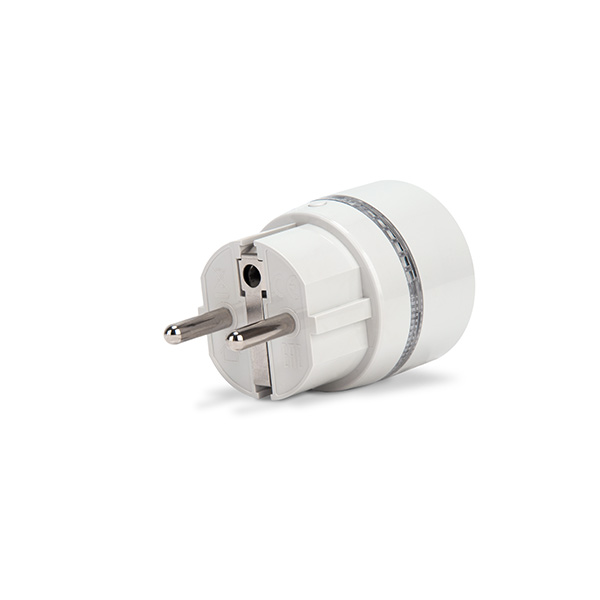

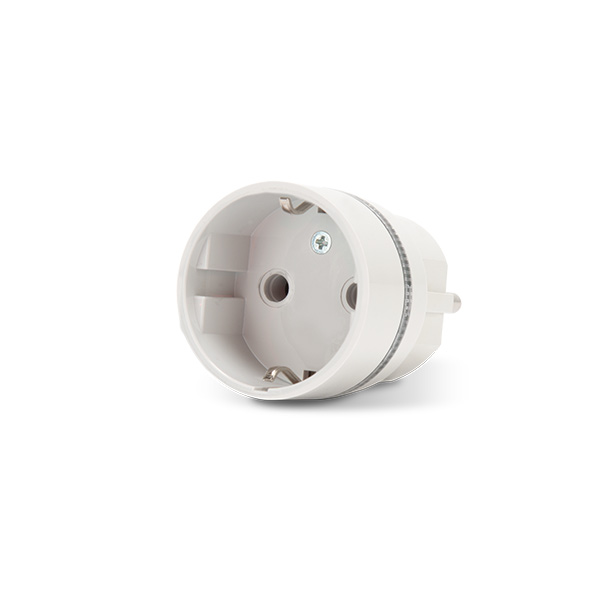

ASW-200 F
Smart plug with Type F socket (SCHUKO)
ASW-200 F is a smart plug that allows to remotely turn on and off connected devices. The smart plug is designed to work within a two-way wireless ABAX 2/ABAX system.
- control of electrical devices of up to 2300 W
- encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
- diversification of transmission channels - 4 channels allow automatic selection of one that guarantees transmission without interference with other signals in the 868 MHz frequency band
- remote upgrade of the smart plug firmware
- remote configuration

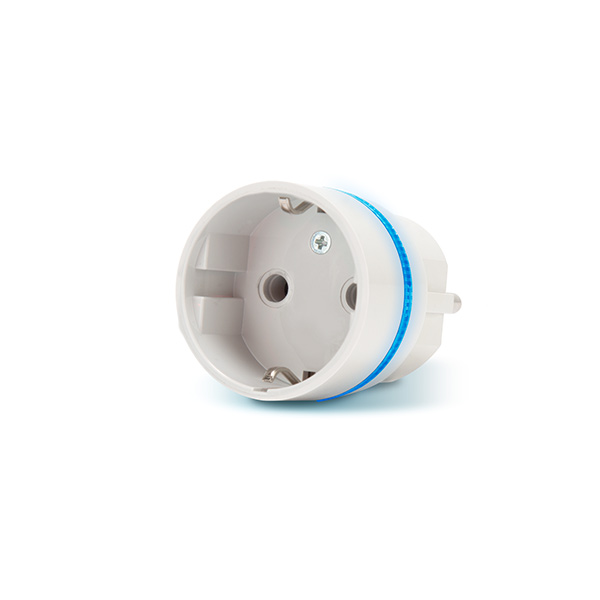

- LED indicator
- can display current consumption by the connected device
- alerts of failure
- can turn the indicator off completely
- special button for configuring the indicator settings
- firmware protection against overloading and overheating
ASW-200 is controlled by:
- ABAX 2:
- ABAX:
- ACU-120/ACU-270 controller
- ARU-100 retransmitter
- INTEGRA 128-WRL control panel
ASW-200 is also available with Type E (EURO) power socket.
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
Documentation
Certificates
Technical Data
Operating temperature range
-10°C...+55°C
Weight
61 g
Maximum humidity
93±3%
Operating frequency band
868,0 ÷ 868,6 MHz
Dimensions
ø45 x 70 mm
Environmental class according to EN50130-5
II
Complied with standards
EN 50130-4, EN 50130-5
Supply voltage
230 V AC, 50-60 Hz
Power consumption in standby mode
1 W
Radio communication range (in open area) for ABAX
up to 500 m
Rated current (resistive load)
10 A
Radio communication range (in open area) for ABAX 2
up to 1000 m
