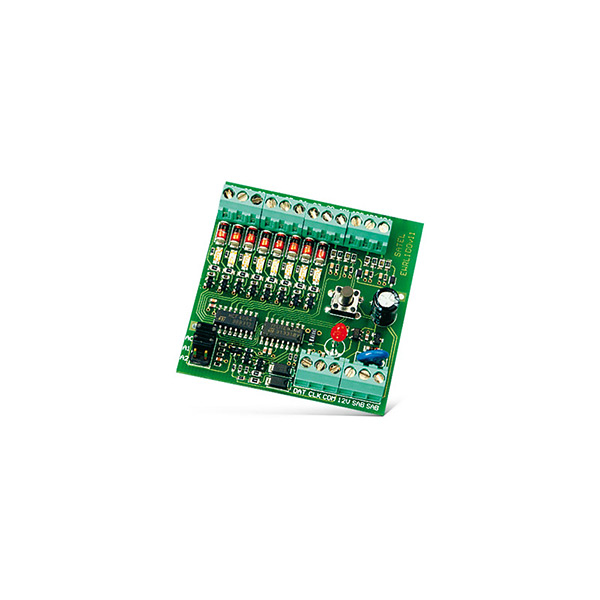

ACX-100

Controller inputs and outputs expansion module

  • expands the ACU-100 wireless controller with additional inputs/outputs for hardwiring with panel's zones
  • 4 control inputs
  • 8 programmable OC outputs
  • communication bus for connecting to ACU-100
EN-50131 GRADE 2 - certificate
discontinued
ACX-100
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.

Documentation

manual
updated: 2013-08-08
85 KB

Certificates

EU declaration of conformity
updated: 2009-09-14
124 KB
EN-50131 GRADE 2 - certificate
updated: 2011-04-22
532 KB

Technical Data

Environmental class
II
Supply voltage
12 V DC
Outputs rating
50 mA
Enclosure dimensions
72 x 118 x 24 mm
Operating temperature range
-10…+55 °C
Standby mode current consumption
70 mA
Max. current consumption
70 mA

Information materials

0

1catalogue

4technical data

5product data sheet
