ARD-100

Wireless reorientation detector

Meet the successor ARD-100!



AXD-200

Wireless multipurpose detector

CHECK

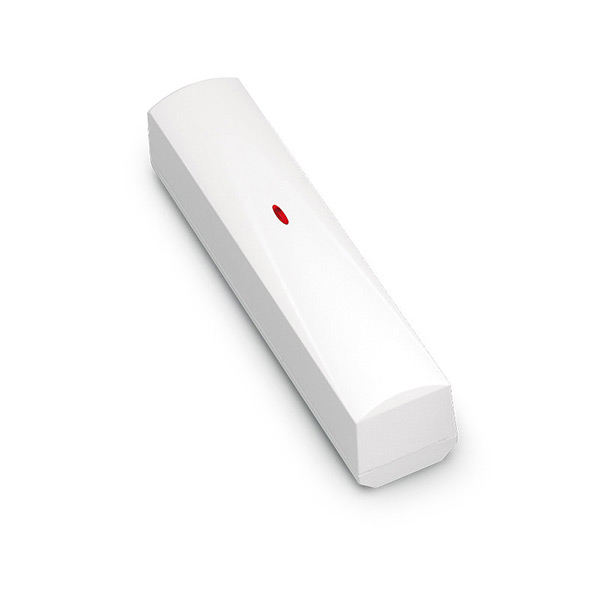

ARD-100 is a wireless reorientation detector designed to operate as part of the ABAX two-way wireless system. The device is used for protection of personal valuables, which is implemented by analyzing changes in their orientation relative to the initially registered position. The built-in accelerometer analyzes acceleration and gravitation. Any displacement is regarded as violation and triggers alarm. Configuration of the device parameters is performed remotely using the DLOADX software. The detector is provided with a battery status feature and tamper protection against opening or tearing off the wall. It is compatible with INTEGRA 128-WRL control panel, ACU-120, ACU-270 and the older ACU-100, ACU-250 controllers, as well as with ARU-100 radio signal repeater.

  • individual protection on precious items
  • detection of item’s reorientation in 3D space
  • remote configuration
  • tamper protection
discontinued
ARD-100
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.

Documentation

manual
updated: 2015-09-30
100 KB

Certificates

EU declaration of conformity
updated: 2009-05-27
148 KB

Technical Data

Environmental class
II
Battery working time (in years)
Estimated 3 years
Enclosure dimensions
24 x 110 x 27 mm
Operating temperature range
-10…+55 °C
Operating frequency range
868,0 ÷ 868,6 MHz
Weight
48 g
Radio communication range (in open area)
up to 500 m
Battery
CR123A 3V

Information materials

0

1catalogue

4technical data

5product data sheet
