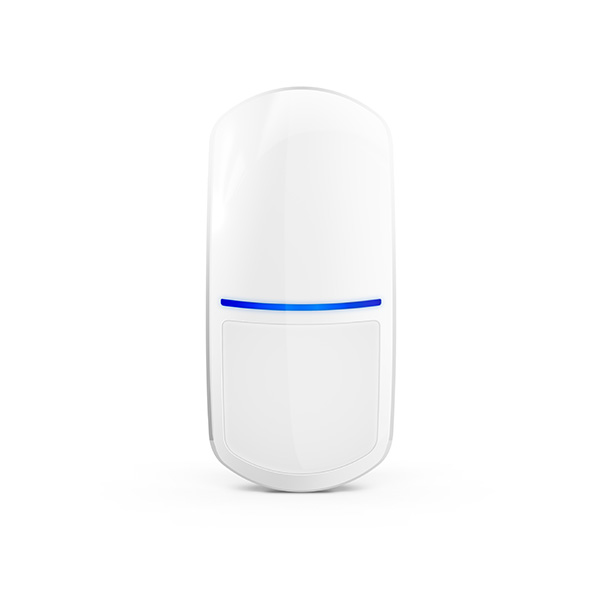

SLIM-PIR
PIR motion detector
SLIM-PIR detects motion in the protected area. The device can be installed on the BRACKET D adjustable wall-and-ceiling mounting holder.
- certificate of compliance with the EN 50131 requirements for Grade 2
- motion detection using passive infrared (PIR) sensor
- adjustable sensitivity of detection
- digital motion detection algorithm
- digital temperature compensation
- wide-angle lens, designed specifically for the SLIM LINE detectors
- option to replace the wide-angle lens with a curtain (CT-CL2) or long-range (LR-CL2) one
- built-in end-of-line resistors (2EOL: 2 x 1.1 kΩ)
- LED indicator
- selectable color of the LED indicator (4 colors available)
- LED indicator remote enable/disable
- supervision of motion detection and supply voltage circuit
- tamper protection against opening of enclosure
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
Documentation
Certificates
Technical Data
Supply voltage
12 V DC
Detected target velocity
0,3...3 m/s
Operating temperature range
-10°C...+55°C
Recommended mounting height
2,4 m
Standby mode current consumption
8 mA
Max. current consumption
23 mA
Weight
100 g
Maximum humidity
93±3%
Dimensions
62 x 137 x 42 mm
Environmental class according to EN50130-5
II
Alarm signaling time
2 s
Complied with standards
EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
EOL resistors
2 x 1,1 kΩ
Warm-up period
30 s
Security grade according to EN50131-2-2
Grade 2
Detection area
15 m x 20 m, 90° (montaż na 2,4 m)
Alarm outputs (NC relay, resistive load)
40 mA / 24 V DC
Tamper outputs (NC)
100 mA / 30 V DC
Relay contact resistance (alarm output)
26 Ω
Permissible installation height
up to 4 m
