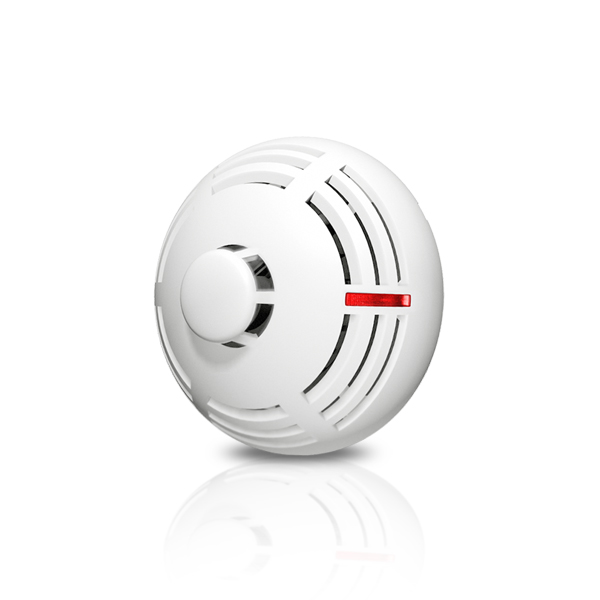

MSD-300
Wireless smoke and heat detector for MICRA system
Smoke and heat detector, designed for early detection of a developing fire. In addition to providing information about the hazard to the control panel, the MSD-300 detector can warn of the danger, using the built-in siren. In contrast to conventional smoke detectors, this device will react not only to visible smoke, but also to a rapid increase in temperature, thus providing more complete protection against the danger of fire.
- compatible with MICRA alarm module, PERFECTA 16-WRL, PERFECTA 32-WRL, PERFECTA-IP 32-WRL, PERFECTA-T 32-WRL and PERFECTA 64 M (equipped with PERFECTA-RF module) control panels as well as VERSA-MCU and MTX-300 wireless system controllers,
- radio signals from a detector can be retransmitted by MRU-300
- photoelectric system for detection of visible smoke accompanying the fire development, meeting the requirements of EN 54-7
- temperature rise detection system, meeting the requirements of Class A1R, according to EN 54-5
- built-in siren to warn of a threat detection
- detection and indication of dirt in the detection chamber to facilitate system diagnostics and maintenance
- manual test and alarm reset button to facilitate regular verification of correct operation
- precision mechanical filter to prevent ingress of insects and dust inside the detector
- energy management system to enable many years of operation without having to replace the CR123A lithium battery
- detection of tamper, e.g. opening enclosure
- IP code: IP20
Application:
Alarm signaling of fire development in small-size buildings, such as kiosks, summer houses, boutiques, freestanding garages and workshops
Delivery set:
Detector, dust cover, CR123A lithium battery, mounting elements, user manual
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
Documentation
Certificates
Technical Data
Battery working time (in years)
Estimated 3 years
Enclosure dimensions
ø108 x 61 mm
Operating temperature range
0…+55 °C
Standby mode current consumption
50 µA
Max. current consumption
20 mA
Weight
170 g
Operating frequency band
433,05 ÷ 434,79 MHz
Radio communication range (in open area)
up to 200 m m
Battery
CR123A 3V
Class according to EN 54-5 (heat sensor)
A1R
Minimum static response temperature
54 °C
Maximum static response temperature
65 °C
